Home Engineering and Construction Machinery Applications Material Handling

Skid Steer Loader

Open All | Close All

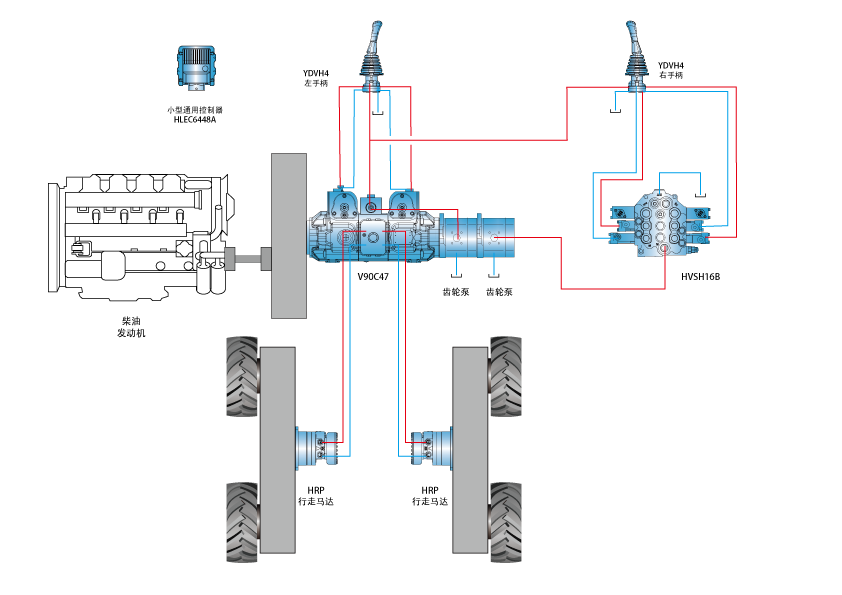

System Solution

Function		Product Configuration	Catalog Download
Walking System	Walking pump	V90C23/47	V90C
Walking System	Walking motor	HRP ，HCLB , HCW , HCG , HSP	HRP , HCLB , HCW , HCG , HSP
Working system	Main working valve	HVSH16B	HVSH
Control system	Pilot handle	YDVH4	YDVH
	VCU	HLEC-C1-2517A ， HLEC-C1-7450 ， HLEC-C1-4934A	HLEC-C1-2517A , HLEC-C , HLEC-C1-4934A
	Hydraulic cylinders	Whole set of hydraulic cylinders
	Cartridge valves	Whole set of cartridge valves
	Counterbalance valves	Whole set of counterbalance valves

Function		Product Configuration	Catalog Download
Walking System	Walking pump	V90C23/47	V90C
Walking System	Walking motor	HRP , HDL , HCW , HCG , HSP	HRP , HDL , HCW , HCG , HSP
Working system	Main working valve	HVSH16B	HVSH
Control system	Pilot handle	YDVH4	YDVH
	VCU	HLEC-C1-2517A ， HLEC-C1-7450 ， HLEC-C1-4934A	HLEC-C1-2517A , HLEC-C , HLEC-C1-4934A
	Hydraulic cylinders	Whole set of hydraulic cylinders
	Cartridge valves	Whole set of cartridge valves
	Whole set of counterbalance valves	Counterbalance valves

Function		Product Configuration	Catalog Download
Walking System	Walking pump	HP6V76/85	HP6V
Working system	Main working valve	HVSH14/16/20 ×2 , EHV18 ×2	HVSH , EHV
Control system	Pilot handle	YDVH3/6	YDVH
	Hydraulic cylinders	Whole set of hydraulic cylinders
	Cartridge valves	Whole set of cartridge valves
	Whole set of counterbalance valves	Counterbalance valves

Product Advantage

- Main Pump:

V90C47 double pump size compact, small installation space, can be developed according to customer needs, such as liquid control, electric control, manual and other control methods, and the combination of DA valve, emergency brake valve, etc., to meet the needs of different host.

- Orbital Motor:

HRP radial piston motor is small, light weight, integrated parking brake, easy installation of piping, and more efficient starting and smoother running

- Main Control Valve:

Achieve precise and stable control effect. Among them, the auxiliary link adopts proportional pressure reducing valve to control the pilot pressure, which can make the whole machine realize more functions.

- Electronic Control:

In the skid steer travel and control system, it can also be matched with our HLEC6448A series (for small machines) or HL-C series controller (for large machines) to enhance the functional adaptability of the whole machine.
